SMC combined 54 years of design and manufacturing knowledge with an uncompromising program of innovation, prototyping and user feedback to create our new Apex Swivel Pulley. The result is a pulley with unmatched security and deceptively simple ease of use.

A patented, low-profile, triple-action lock prevents accidental openings, but the intuitive and ergonomic design can be opened with one hand. The robust lock is operated by three distinct actions: pivot the lock, depress the lock, and swing the side-plate. Simply closing the side-plate re-engages the lock and secures the rope.

The symmetrical side-plates are optimized for use with prusik-based progress capture systems and minimize the possibility of mis-rigging.

When unlocked, the side-plates swing away to streamline setup and offer maximum versatility when placing the pulley anywhere in your system.

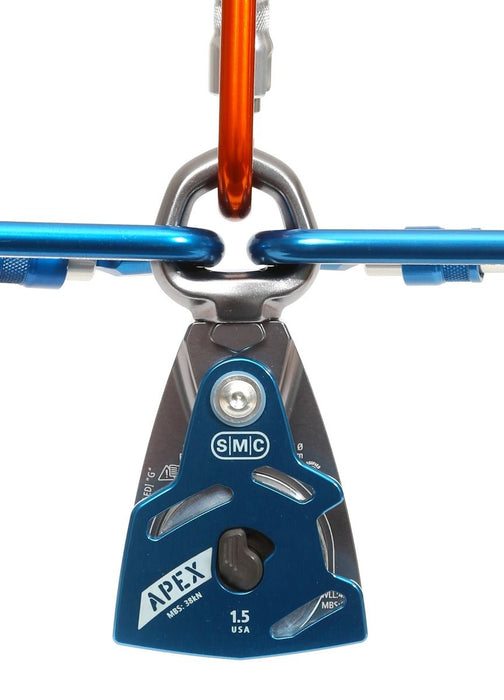

The cold-forged, custom designed swivel eye accommodates up to three carabiners and the rounded profile offers excellent soft goods compatibility when you want to eliminate the carabiner altogether.
The APEX is best-in-class when you need a robust, versatile, and American-made pulley that is perfect for use in rescue, rope access, or arborism.

  • Model #: NFPA165120
  • Material: Aluminum, Stainless Steel
  • Finish: Anodized, Blue/Grey
  • Dimensions: 5.9” x 2.9”
  • Weight: 10.8oz (306g)
  • MBS: 38kN
  • WLL: 9.5kN
  • Certification: NFPA
  • Rope size: up to 13mm
  • Sheave Major Diameter: 2.0”
  • Sheave Tread Diameter: 1.5”
  • Sheave Material: Aluminum
