NODUS Pad-SX Series Rope Padeyes

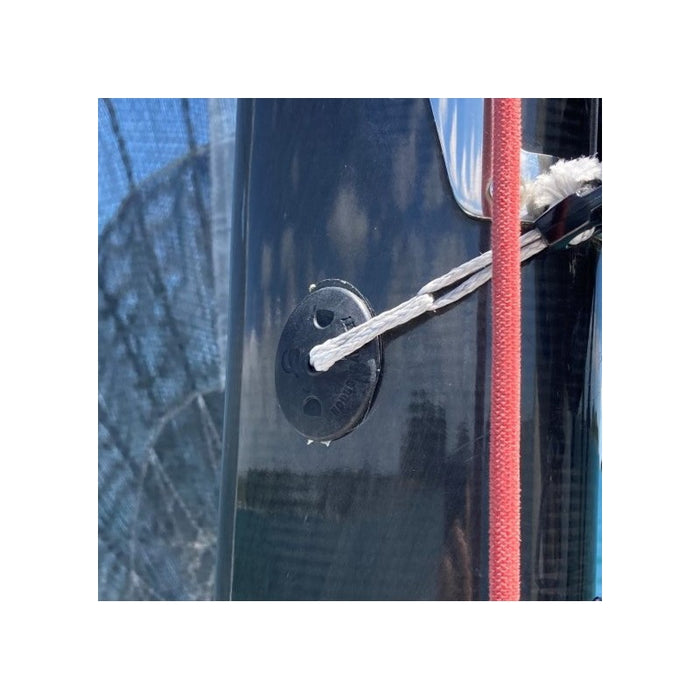

Glue-on Padeye, Padeye SX® (Adjustable) ideal for hanging equipment in or on your boat.

Ultra-strong and lightweight, it can be attached without drilling, and supports a working load of 150kg to 250kg.

The Nodus-Pad-SX® is the only padlock / trigger guard with adjustable Dyneema® textile loop.

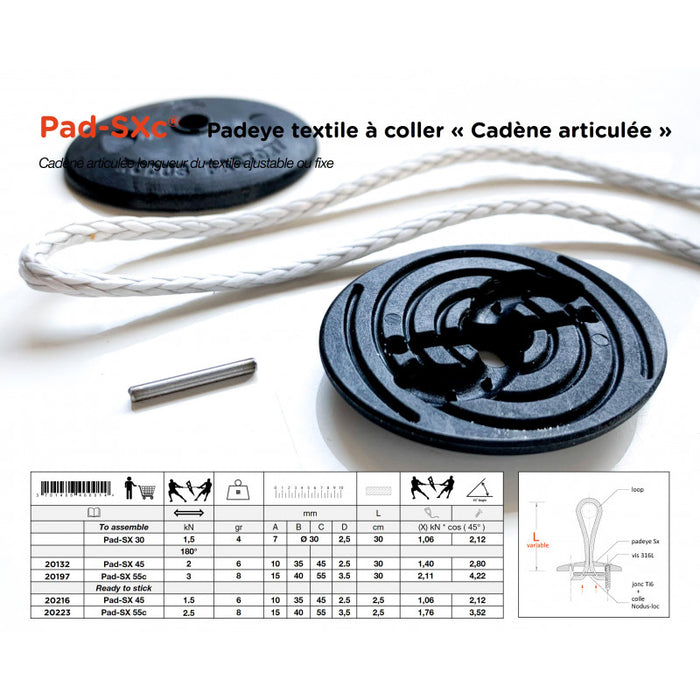

DATA SHEET

• Padeye SX in PA technical loaded glass fiber & mixed carbon 60%
• Model 45 : Length 45 mm & Width 35 mm - Thickness 6mm in the center / 3mm at the ends
• Model 55: Length 55 mm & Width 42 mm - Thickness 8mm in the center / 3,5mm at the ends
• Stainless steel ring, as a restraint for the dyneema® textile loop
• Dyneema® textile loop, Padeye SX 45 in 3mm, Padeye SX 55 in 5mm
• Mounting with Nodus-Loc® bi-component adhesive for high load or Sikaflex 292i adhesive

Sizes: SX 45 mm / SX 55 mm | Resistance from 200kg to 350kg or more with mechanical fastening "316L stainless steel screws".
